      Temperature and Humidity Monitoring in Trucks and Vehicles with SmartHub & TempBeacons

      In this concept, you will be guided on how to best use the TempBeacons in combination with our gateway system, SmartHub, in trucks and vehicles. It is structured in four sections:

      📱 Explanation of device functionality

      📃 Instructions for correct Hardware Installation Setting Up

      💻 Hardware in the Tec4Cloud

      ☑️ Individual device Configuration



      📱Explanation of device functionality

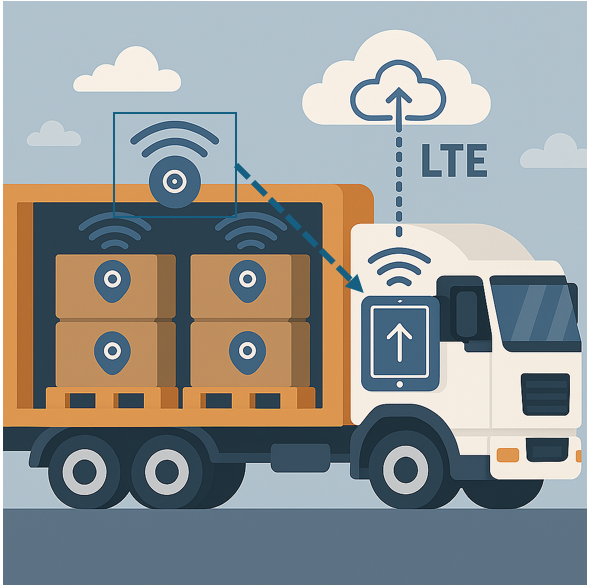

      The SmartHub seamlessly interacts with the TempBeacons, employing Bluetooth technology to automatically identify and connect with them within its operational range.

      SH

      SmartHub

      The SmartHub serves as an advanced beacon gateway monitoring system, designed for seamless integration into various inter-logistic processes, whether at the level of boxes, pallets, containers, trucks, or warehouses. For additional technical details regarding the SmartHub, please refer to our comprehensive Factsheet and Manual.

      The difference between the mobile and stationary software versions of the SmartHub is thoroughly explained in this article.







      TempBeacons

      The TempBeacons are sophisticated sensor devices designed for continuous monitoring of temperature and humidity levels. These devices transmit their measurement data wirelessly via Bluetooth to the SmartHub gateway system. For further technical insights and detailed information about the TempBeacon, please consult our comprehensive Factsheet, Quick Guide, and Manual.



      📃 Instructions for correct Hardware Installation Setting Up

      To ensure proper hardware installation in trucks or vehicles, it is essential to verify that no conductive objects, such as metal walls in the truck trailer, obstruct the Bluetooth connection between the SmartHub and the TempBeacons. Ensuring an unobstructed connection will help maintain reliable communication and optimal performance of the hardware.



      SmartHub

      • Attach the SmartHub in the driver's cab or a protected area of the vehicle to ensure optimal range. To ensure proper hardware installation within the refrigerator, it is crucial to confirm that the SmartHub, positioned outside the refrigerator, can establish a reliable connection with the TempBeacons located inside. Maintaining this unobstructed connection is vital for ensuring consistent communication and optimal performance of the hardware.
      • Ensure that the SmartHub is securely mounted and does not come loose due to movement or vibrations.
      • Ensure that the SmartHub is securely fastened and does not impair the driver or vehicle functions. Make sure the display is not covered.
      • Ensure that the SmartHub display is turned on (instructions for correct activation can be found here).

      TempBeacons/CryoBeacon

      • Place the TempBeacons/CryoBeacon in cooling areas or trailers where temperature monitoring is required.

      • Use the designated mounting holes and appropriate fastening materials, such as screws or tape, depending on the surface, to mount the TempBeacon in the desired location.

      • Ensure that the TempBeacon is securely mounted and not affected by movement or vibrations.

      • Make sure that the protective membrane of the temperature and humidity sensor is not covered.

      • It is recommended to secure the TempBeacon with cable ties.

      For more detailed instructions on how to install the TempBeacons with the SmartHub, please see this article.



      💻 Hardware in the Tec4Cloud

      For optimal use of the SmartHub with TempBeacons for temperature and humidity control, we recommend creating applications in Tec4Cloud. This allows you to view all measured values from TempBeacons at a glance. Please follow these steps when setting up devices in Tec4Cloud:



      1. Name and define your application in Tec4Cloud.

        • Select your preferred alert thresholds from the predefined settings and provide additional information about the application.

      2. Note: It is not necessary to add the SmartHub to the application.

        • The SmartHub only transfers the measured data automatically to Tec4Cloud and does not need to be added as a device. Add TempBeacons using the last three digits, e.g., 220000000123, to the application. Please note: The SmartHub is primarily a gateway system, not a measuring logger

      3. To create an application in Tec4Cloud, please follow the steps described in the interactive Tec4Cloud Tutorial.
        • The tutorials provide detailed, step-by-step explanations of each function in Tec4Cloud.
      4. After a certain period of time, depending on the transmission interval of your SmartHub, please check if the data is visible on your created Site in Tec4Cloud. Refer to the Tec4Cloud Tutorial for guidance on how to create Sites in Tec4Cloud.



      ☑️ Individual device Configuration

      For the mobile SmartHub, in combination with the TempBeacons, the following interval settings are possible:

      Recording Interval: Depends on the recording interval of the TempBeacon. Captures the temperature and humidity of the SmartHub, as well as measurements from Beacons. Possible values: 5 / 10 / 15 / 30 / 60 / 120 minutes; 12 hours.

      Transmission Interval: The upload time to Tec4Cloud. It should be a multiple of the record interval. This setting significantly impacts power consumption and runtime. Possible values: 15 / 30 / 60 / 120 minutes; 12 hours.
